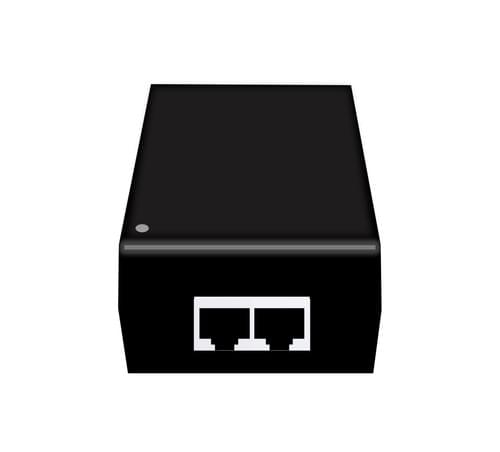

SH-PS301A3 PoE Injector | 10/100/1000M AC100-240V, 30W PoE out,1/2/+, 3/6-
Interface: 1x gigabit ethernet input port and 1x gigabit output with PoE power
Ethernet Data Rate: 10/100/1000Mbps
Compliant with 802.3af, 802.3at, 802.3bt
Up to 30W Power Output, up to 300ft distance
Auto-Sensing Technology and Protect Non-Power Devices
Plug & play
Ethernet Data Rate: 10/100/1000Mbps
Compliant with 802.3af, 802.3at, 802.3bt
Up to 30W Power Output, up to 300ft distance
Auto-Sensing Technology and Protect Non-Power Devices
Plug & play
More Details
| Product Model | SH-PS301A3 | ||
| Product Name | Gigabit 30W 802.3at PoE Injector | ||
| Ethernet Port | 1× 10/100/1000Mbps input Port, 1× 10/100/1000Mbps Output Port | ||
| Network protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE802.3x (Flow Control) | ||
| PoE Protocol | IEEE802.3at (30W) IEEE802.3af (15.4W) | ||
| PoE Pin | 1/2+; 3/6- | ||
| Working Environment | Operating temperature: -10~50°C, Storage temperature: -40~70°C, Operating humidity: 10%~90%, no condensation, Storage humidity: 5%~95%, no condensation | ||
| Structure Size |
| ||
| Installation | Desktop/Wall Mount | ||
| Shell |
| ||
| Power Voltage |
| ||
