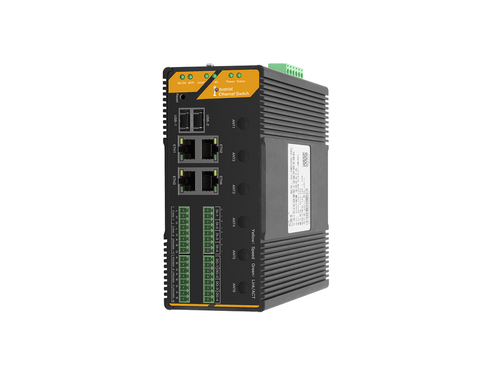

SH-IEC-4088  is designed based on the quad-core processor with RK3568J with a main frequency of 1.8GHz, ARM Cortex-A55 from SHLINK.

It supports 4 network interfaces, 1 Console port, 2 USB 2.0 ports, 4 isolated RS485 interfaces, and 4 dry contact DI/DO expansions. Through modular component installation, it optionally provides 4G/5G, SDD, LoRa, 4G, and RTC function expansions. It supports the Debian operating system and has dimensions of 153*13*75mm

CPU

ARM A55 Quad-core Main frequency 18.8GHz

DRAM

4GB@DDR4

Flash

eMMC 8GB

Ethernet

Supports 4x 10/100/1000Mbps Ethernet interface type: 2x 2x1 RJ45

USB

2x USB2.0; Interface type: 2x1 Type A

RS485

4x isolated RS485; interface type: 3.5mm terminal block; Baud rate supports 9600

CAN

2x isolated CAN; Interface type: 3.5mm terminal block

TF

1x SDMMC

Console Port

interface type:RJ45

Communication Modules

1x M.2 slot, supports 4G/5G module; Slot size: KeyB 2280mm

1x Mini-PCIE slot; for 4G module expansion; Slot size: Full-length card

Optional Expansion Functions

4x DO/DI, dry contact, isolated; interface type:3.5mm teminal block

1x M.2 KeyM, for SSD expansion

2x miniPCIE slots, support Lora, WIFI expansion; Slot size: Half-length card

Real-Time Clock

Uses dedicated RTC chip; Expansion

Reset Button

1x Reset, for system reset

DIP Switch

CFG1: Reserved for quick configuration in specific application scenarios 1;

CFG2: Reserved for quick configuration in specific application scenarios 2;

CFG3: Reserved for quick configuration in specific application scenarios 3

Power Supply

Supports dual power input

PWR: DC:12V-54V   PWR: 12V-54V

Dimensions

153mm x 115mm x 75mm

Mounting Method

DIN rail mounting, lug mounting

Operating Environment

Operatinge temperature -40-75℃; Relative humidity 5%-95% non-condensing; Fanless, natural cooling
