Chip

Type:

Xuanyuan 1012

CPU:

Integrated RISC-V CPU

CPU Clock Speed:

125M

Maximum Frame Length:

16000 bytes

On-Chip Cache:

3Mb

VLAN:

4k

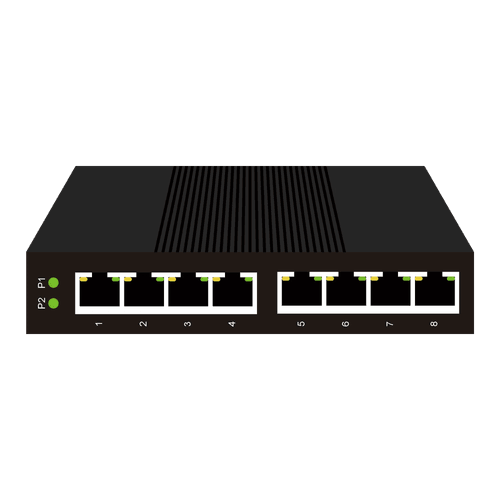

Port

Copper:

8x10/100/1000Mbps RJ45

Reach:

≤100m @100/1000Base-T

≤250m @10Base-T

Switching

Bandwidth:

12G

MAC:

4K

Forward Rate:

11.9Mpps

Store-and-Forward:

Support

Power

Voltage:

DC12V~54V

Consumption:

≤10W

Connector:

6-pin 5.08mm pitch terminal block

Power Redundancy:

Support

Reversed Polarity Protection

Support

Environmental

Operating Temperature:

-40℃- +85℃

Operating Humidity:

5%-90% , non-condensing

Storage Temperature:

-40℃- +95℃

Storage Humidity:

5%-95% , non-condensing

Mechanical

Casing:

Compact metal casing

Protection Rating:

IP40

Dimensions:

140*95*30mm

Net weight:

0.4kg

Installation:

DIN rail

Safety & Reliability

ESD:

IEC61000-4-2, Air ±15KV, contact ±8KV

RS:

IEC61000-4-3

EFT:

IEC61000-4-4, Power line ±4KV, signal line ±2KV

Surge:

IEC61000-4-5,

Power: differential mode ±2KV, common mode ±4KV;

Signal line: differential mode ±2KV, common mode ±6KV

Others

LED：

Power Indicator Light

RJ45 Link/Act Indicator

Rate Status Light

MTBF:

500,000hrs

Protocol

IEEE802.3

Ethernet

IEEE802.3i

10Base-Tx

IEEE802.3u

100Base-Tx/Fx

IEEE802.3z

1000Base-X

IEEE802.3ab

1000Base-Tx

IEEE802.3x

Flow Control

IEEE802.1q

VLAN

IEEE802.1w

RSTP

Switching

Redundant Network:

Support STP/RSTP, Support ERPS

Loop Guard:

Support for proprietary loop protection protocol

ERPS:

Support single-ring ERPS

MAC:

Compliant with the IEEE 802.1q standard,

Support MAC address auto-learning and aging,

Support both static and dynamic MAC address table entries

Port Mirroring:

Support port-based bidirectional mirroring

VLAN:

Support port-based VLAN, Support access port, trunk port, hybrid port

Static Aggregation:

Support

Safety

ACL:

Support matching fields at L2, L3, and L4 layers

Management

Web Management:

Support

IPV4/IPV6:

Support

Port Management:

Support port activation and deactivation,

Support rate configuration,

Support enables 802.3x flow control

Application

Version Upgrade:

Support
