Wi-Fi Features

Network Standard

IEEE 802.11a/b/g/n/ac/ax/be

IEEE 802.11h(dfs)

IEEE 802.11e(wmm)

IEEE 802.11k/v/r

IPv4/IPv6 dual stack

WIFI Data Rate

2.4GHz: up to 1030Mbps (802.11b/g/n/ac/ax

5GHz: up to 2880Mbps(802.11a/n/ac/ax

6GHz: up to 5760Mbps(802.11a/n/ac/ax

Transmit/Receive

2.4GHz 3x3; 5GHz 2x2; 6GHz 2x2

Speed Rate

BE10000

Hardware Parameters

Memory

RAM 512MB, Flash 256MB

Boosts Speed

OFDM:1024-QAM

Operating Frequency

2.4GHz;5GHz;6GHz

Antenna

3 x 3dBi internal 2.4G antenna

2 x 5dBi internal 5G antenna

2 x 5dBi internal 6G antenna

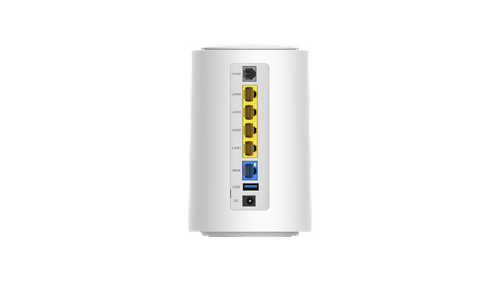

Ethernet Ports

4x RJ45 1G LAN Ethernet

1 x RJ45 10G WAN Ethernet interface

Buttons

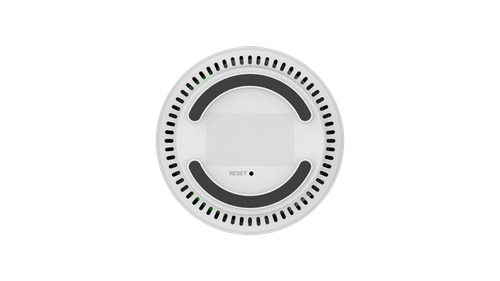

1 x reset button

1 x WPS button

Other port

1x Power jack

Power supply

12V/1.5A

Software Features

Parental Control

Web & Apps Filters
Time Scheduling

Operating Mode

Wireless Router Mode

Access Point Mode

Network spec Features and Security

IPoE bridge mode, IPoE DHCP/Static, NAT, QoS, VPN passthrough, IPv6, DHCP server, IGMP proxy and MLD for IPTV, SPI Firewall

Denial of Serve (DoS) protection

WPA3/SAE Security

Separate authentication foe each SSID

L2TP GRE IPSEC VPN

PPPoE Dynamic/Static

SNMPv2, UPnP

Wireless spec Features

easyMesh

Embedded AP with 8 SSIDs on each Radio,

WMF, AutoChannel, BSD

Package Content

Auro 930 wifi 7 router

RJ45 cable

Power adapter

Warranty card

Environment

Operating Temperature

0°C~40°C

Storage Temperature

-30°C ~ 70°C

Operating Humidity

5%~95% (typical)
