Wi-Fi Features

Network Standard

IEEE 802.11a/b/g/n/ac/ax/be

IEEE 802.11h(dfs)

IEEE 802.11e(wmm)

IEEE 802.11k/v/r

IPv4/IPv6 dual stack

WIFI Data Rate

2.4GHz: up to 688.5Mbps (802.11b/g/n/ac/ax/be

5GHz: up to 5765Mbps(802.11a/n/ac/ax/be

Transmit/Receive

2.4GHz 2x2; 5GHz 4x4

Speed Rate

BE6500

Bandwidth

160MHz

Hardware Parameters

Memory

RAM 512MB, Flash 256MB

Boosts Speed

OFDM:4096-QAM high data rate

Operating Frequency

2.4GHz;5GHz

Antenna

2 x 3dBi internal 2.4G antenna

2 x 5dBi internal 5G antenna

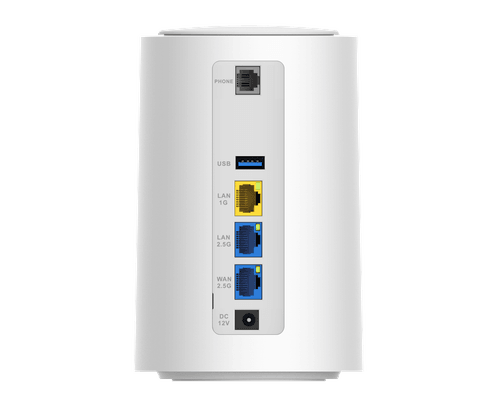

Ethernet Ports

1 x RJ45 10M/100M/1000M LAN Ethernet

1 x RJ45 2.5G LAN Ethernet

1 x RJ45 2.5G WAN Ethernet interface

Buttons

1 x reset button

1 x WPS button

Other port

1x Power jack

Power supply

12V/2A

Software Features

Parental Control

Web & Apps Filters
Time Scheduling

Operating Mode

Wireless Router Mode

Access Point Mode

Network spec Features and Security

IPoE bridge mode, IPoE DHCP/Static, NAT, QoS, VPN passthrough, IPv6, DHCP server, IGMP proxy and MLD for IPTV, SPI Firewall

Denial of Serve (DoS) protection

WPA3/SAE Security

Separate authentication foe each SSID

L2TP GRE IPSEC VPN

PPPoE Dynamic/Static

Wireless spec Features

easyMesh

Embedded AP with 8 SSIDs on each Radio,

WMF, AutoChannel, BSD

Package Content

BE6500 wifi 7 router

RJ45 cable

Power adapter

Warranty card

Environment Requirement

Operating Temperature

0°C~40°C

Storage Temperature

-20°C ~ 90°C

Operating Humidity

5%~95% (typical)
