NEW Product ! | SH LINK

Industrial Dual Chip 1*9 Optical Module

· Industry News & Trends
broken image

In today’s rapidly evolving landscape of data centers, 5G transmission, and supercomputing networks, the stability and performance of optical modules directly determine the upper limits of communication system performance.

We promptly launched our groundbreaking dual-chip optical module, which shatters the performance limitations of traditional single-chip solutions with its revolutionary architecture, delivering core technological support for high-reliability, low- latency applications!

WHY Choose Dual-Chip?

1. Functional Partitioning and Architecture Design

Single-chip optical module: Integrates the core functions of optical transmission(transmitter side) and optical reception(receiver side) --such as laser driving, modulation, photoelectric conversion, and signal amplification --onto a single chip, achieving functional division through internal circuitry.

l Advantages: Compact size, low power consumption, and reduced cost

l Disadvantages: High functional coupling, which may lead to performance degradation due to signal interference or thermal effects.

Dual-chip optical module: Decouples the core functions of the transmitter and receiver into two dedicated chips(laser driver ship + receiver-side signal processing chip), enabling optimized performance for each subsystem.

l Advantage:Strong functional isolation, reducing signal crosstalk

l Disadvantage:Independent optimization for transmitter and receiver and receiver designs.

Aging Test

Aging test

2. Increased Performance Requirements

The dual-chip design enables more sophisticated chromatic dispersion compensation and signal equalization functions. While single-ship integration combines both transmitter and receiver functions--making signal processing susceptible to interference--the dual-chip solution allows independent optimization for each subsystem:

l Transmitter Side: Precise laser modulation control(e.g., EML lasers) to enhance signal purity.

l Receiver Side: Enhanced signal amplification and noise suppression(e.g., APD+TIA configuration) for improved sensitivity.

Optical Power Measurement

Optical Power Measurement

3. Signal Isolation and Anti-interference

Integrating transmitter-side (high-power laser driving) and receiver-side (high-sensitivity signal detection) circuits on a single chip increases susceptibility to electromagnetic interference-induced signal degradation. The dual-chip architecture mitigates crosstalk risks through physical isolation.

End-face Test

End-face Test

4. Thermal Management Optimization

Laser diodes generate significant heat, so designing a dedicated transmitter chip enables targeted thermal optimization, preventing heat-induced impacts on receiver-side circuits(e.g., temperature drift issues in transimpedance amplifiers).

Extinction Ratio Test

Extinction Ratio Test

5. Functional Flexibility and Scalability

The modular dual-chip design enables independent upgrades of th etransmitter and receiver sides. Supporting advanced functionalities, this architecture allows dedicated processing for each chip in high-speed optical modules(e.g., coherent optical communication):

l Transmitter Side: Digital Signal Processing(DSP), High-order Modulation(e.g., QPSK, 16-QAM)

l Receiver Side: Polarization Demultiplexing , Forward Error Correction(FEC)

broken image

Eye Diagram

6. Reliability and Fault Isolation

Reducing single-point failure risks: By decoupling transmit and receive functions, if one chip fails, the other may remain operational(e.g., receiver failure won’t disrupt emergency transmissions from the transmitter).

Streamlined maintenance and testing: The dual-chip module allows independent performance testing of transmit or receive functions, significantly reducing production debugging complexity.

Bir Error Rate and Receiver Sensitivity Test

BER and Receiver Sensitivity Test

"Full Product Portfolio Now Live!”

With deep expertise in 1*9 packaging technology, SH LINK comprehensive dual-chip optical module portfolio covers full rate options including 155Mbps, 622Mbps, and 1.25Gbps, supporting both single-mode and multi-mode transmission.

Offering SC, FC, and ST fiber optic interface options, our solutions are compatible with a wide range of communication equipment including optical terminals, fiber transceivers, fiber routers, CAN-to-fiber converters, switches, and UAV systems - meeting even the most demanding application requirements.

(P.S. “

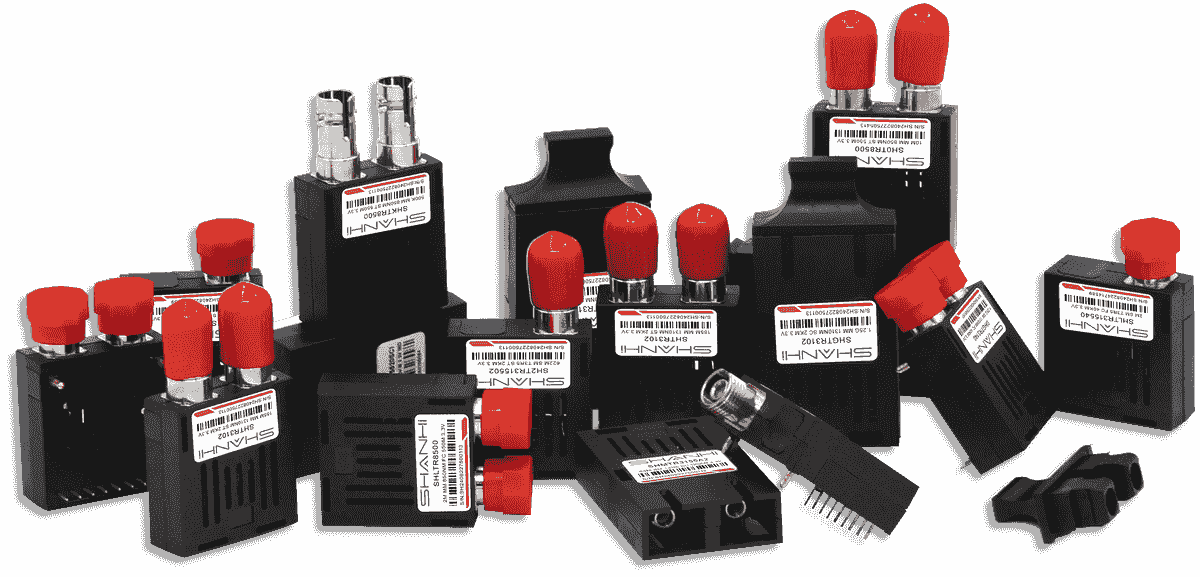

Above: testing site photos. Below: product photos.")
